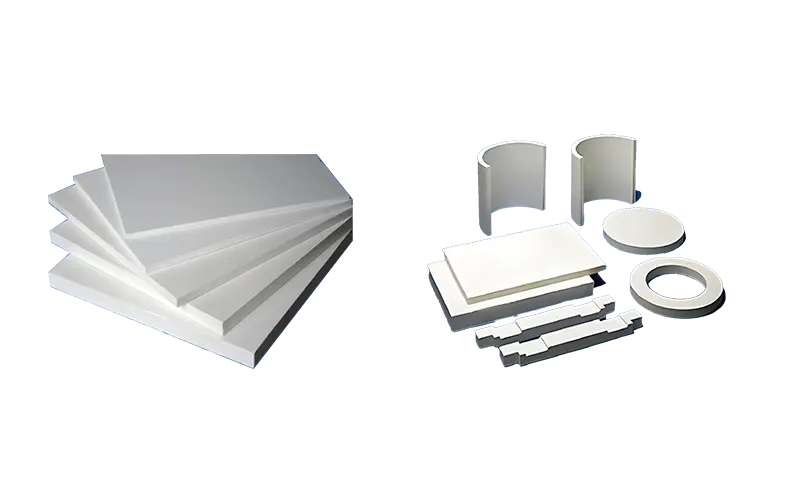

Ceramic Fiber Insulation Board/Products

Product Description

The ceramic fiber insulation boards/products provided by Laplace are custom-designed for thermal energy management and can be designed and provided with mature insulation solutions and products for different environmental conditions.
Suitable for industries such as broad semiconductor, energy, metallurgy, petroleum, chemicals, etc.
Products can be specially customized according to the application environment.

Product Description

The ceramic fiber insulation boards/products provided by Laplace are custom-designed for thermal energy management and can be designed and provided with mature insulation solutions and products for different environmental conditions.
Suitable for industries such as broad semiconductor, energy, metallurgy, petroleum, chemicals, etc.
Products can be specially customized according to the application environment.

Product Advantages

Low thermal conductivity and low heat capacity.
Excellent machinability and cutting characteristics.
Outstanding thermal stability and thermal shock resistance.
Customizable according to application scenarios.
High compressive strength and good toughness.

Product Advantages

Low thermal conductivity and low heat capacity.
Excellent machinability and cutting characteristics.
Outstanding thermal stability and thermal shock resistance.
Customizable according to application scenarios.
High compressive strength and good toughness.

Product Specifications

Items	Test Conditions	1350LP	1500LP	1600LP	1700LP	1800LP
Maximum Operating Temperature (℃)		1350	1500	1600	1700	1800
Operating Temperature (℃)		1150	1400	1500	1600	1700
Standard Density (kg/m³)	GB/T 17911	300 (350/400/450)	300 (350/400/450)	400 (300/350/450)	350 (400/450)	400 (450/500)
Heating Wire Shrinkage (℃)	GB/T 17911	1100℃*24hr 0.34%	1400℃*24hr 0.42%	1500℃*24hr 0.39%	1600℃*24hr 0.36%	1700℃*24hr 0.3%
Surface Hardness	ASKER-C	≥50	≥50	≥55	≥55	≥55
Therrmal Conductivity (W/m·K)	GB/T 10297	at 400℃ 0.08 at 600℃ 0.121 at 800℃ 0.161	at 600℃ 0.144 at 800℃ 0.193 at 1000℃ 0.261	at 600℃ 0.115 at 800℃ 0.201 at 1000℃ 0.241	at 600℃ 0.15 at 800℃ 0.176 at 1000℃ 0.216	at 600℃ 0.159 at 800℃ 0.189 at 1000℃ 0.228
Chemical Composition (％)	Al2O3： Al2O3+SiO2：	41 98.8	57 99.4	65 99.4	76 99.7	78 99.8
